LCG AJ Series

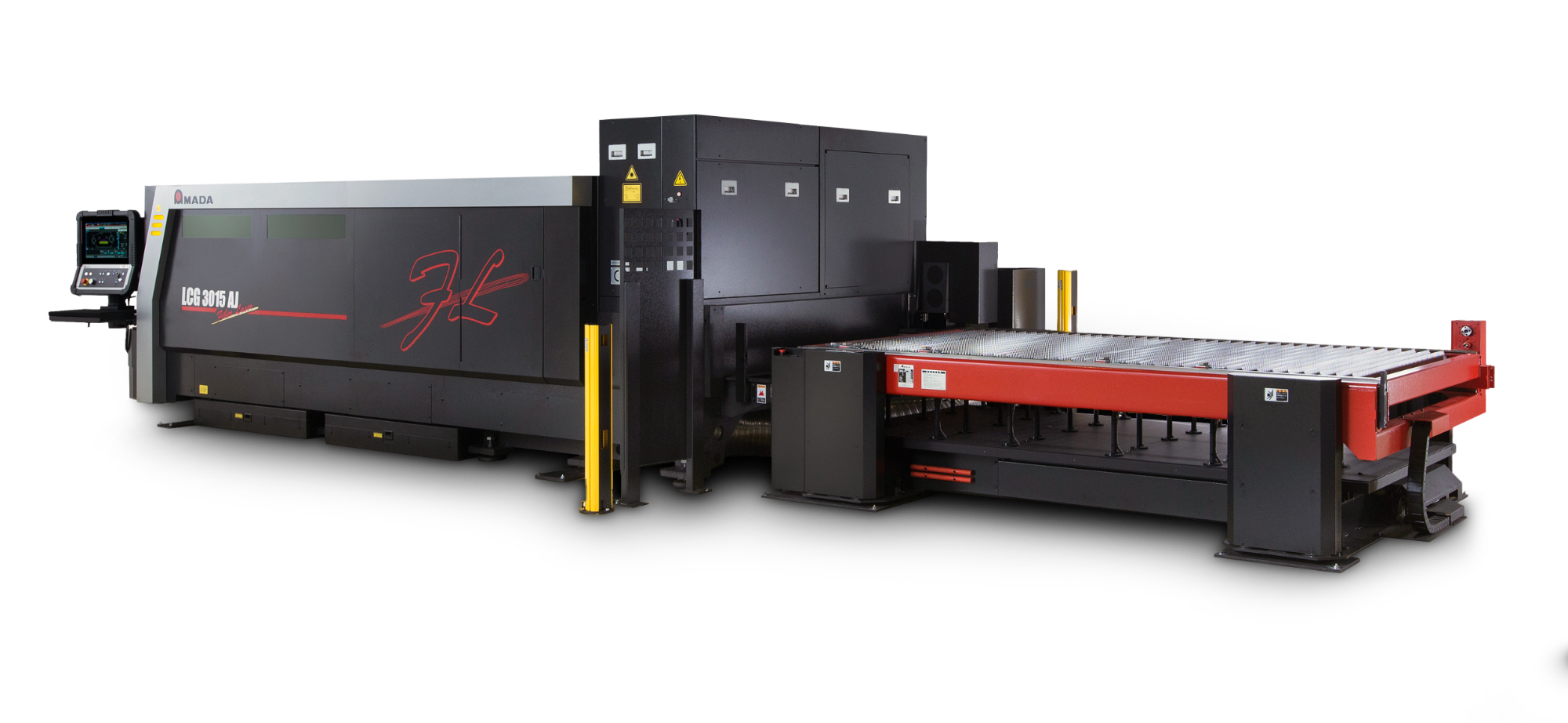

LCG AJ Series Fiber Laser

The LCG AJ Series uses approximately a third of the electricity required by the same wattage CO₂ laser system. It is also three times more efficient with the electricity it does utilize, reducing costs and providing a more environmentally-friendly laser system. The LCG AJ Series does not require laser gas, mirrors, or any other items typically associated with generating a CO₂ laser beam. A single fiber optic delivery cable eliminates the need for additional external mirrors. The result is significantly less operating costs and maintenance.

Additionally, the LCG AJ Series can be fully automated with a variety of material handling options designed and manufactured by AMADA.

LCG AJ Series Standard Features

• Includes a full enclosure that surrounds the entire cutting area with access for part removal
• Utilizes a helical rack and pinion drive system for both the X and Y axes, while the Z-axis is equipped with a high-precision ball screw
• Specifically designed to handle high-speed operation, the LCG AJ Series is also engineered to maximize safety with a sectionalized dust collection system
• AMNC 3i Control touchscreen with intuitive graphic display and with upgraded processor making it the fastest AMADA control available
• A high-speed cutting head with increased sensing speed for faster cutting and plasma resistance in thin materials
• Engineered for simplified setup, the lens and nozzle can be easily removed and installed without tools, wires or air lines
• Available in 3kW, 6kW and 9kW
